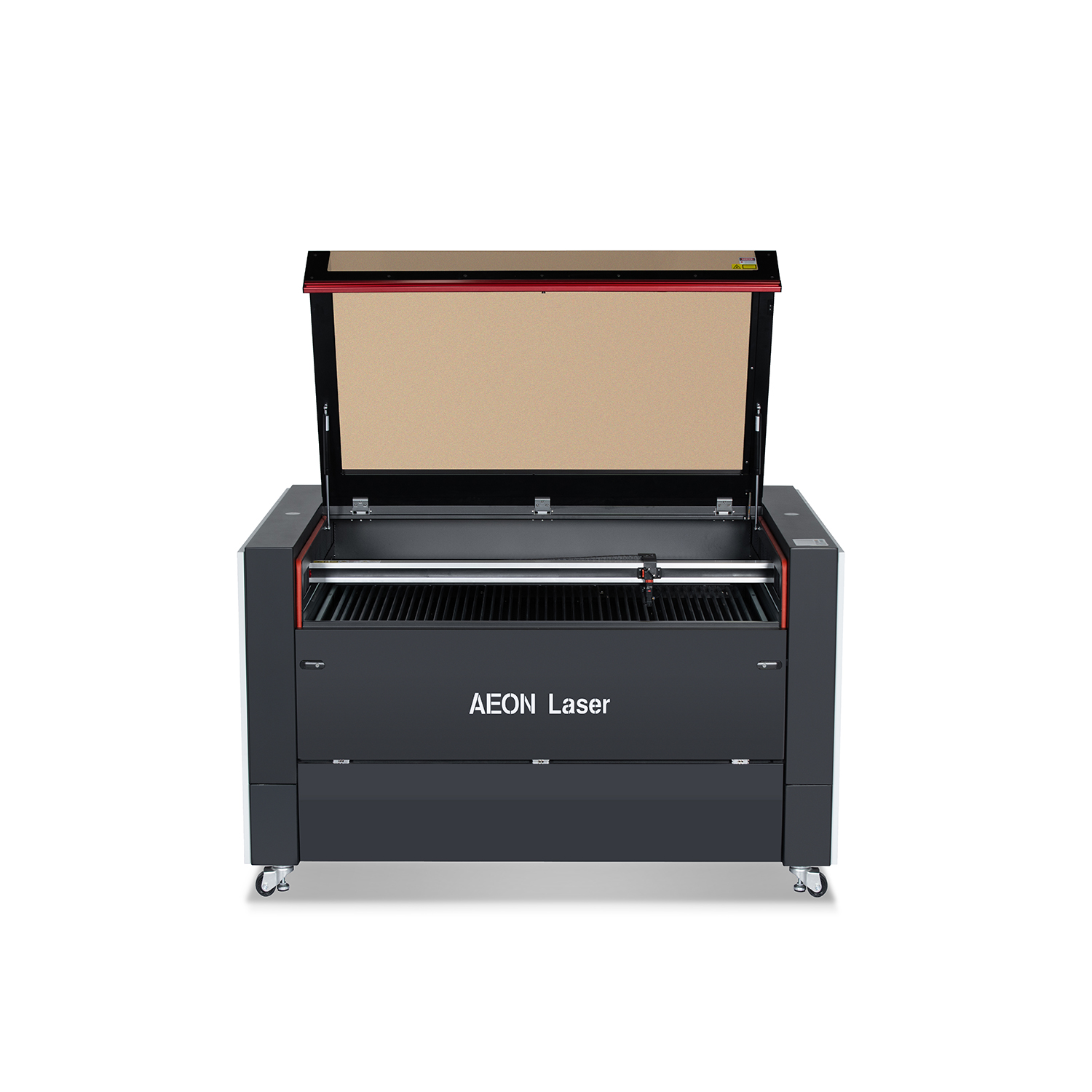

Nova10 Super

Short Description:

Nova10 Super is the newest co2 laser engraving and cutting machine from AEON Laser. Super Nova10 has a  700*1000mm working area, and scan speeds of up to 2000 mm/second.  Super Nova is the Nova series’ upgrade edition. Super Nova10 offers the Metal RF & Glass DC in one machine. A fast machine can meet you more needs and brings you more benefits.


  • :
  • Product Detail

    TECHNICAL SPECIFICATIONS

    Product Tags

    Overall Review

    Super Nova10 is a professional co2 laser engraving and cutting machine. The working area is 700*1000mm. Super Nova10 offers the Metal RF & Glass DC in one machine. Nova10 Super's engraving speed is as fast as MIRA series machines. Also can go 2000mm/sec, the acceleration speed is 5G, has the fastest speed in its class.
    The structure of the Nova10 super is very strong, which makes it more steady. The machine equipped with honeycomb and blade worktable and with model 5200 chiller, makes it possible to install 100W or even 130W laser tube. The Z-axis now increased to 200mm, so it can fit in higher products. The air assists system got pressure gauge and regulator to give the users option to add a more powerful compressor to cut thicker materials. The front and back material pass-through door makes it possible to cut long materials.

    Advantages of Nova10 Super

    super nova14_1

    Super Strong Fully Enclosed Machine Body

    The Super NOVA10 is built like a tank. The main structure adopted a thick steel tube, which ensured strength. The whole body was fully enclosed, with sealing on every door and window, more safety.

    Whole optic path and guide rail clean pack design.

    Aeon Laser’s signature clean pack technology has taken the next step in the evolutionary process. Not only are the linear rails and bearing blocks enclosed (as in previous models), but protective curtains on the left and right side of the working area now prevent unwanted particles from the motion system as well as optic path. These will greatly reduce the maintenance of the machine and enhanced the engraving outcome.

    57



    Metal RF & High Power DC glass tube together

    Suits for Reci W2/W4/W6/W8 Premium CO2 Glass Tube, 30W/60W RF Metal Tube

    8-1-e1614254948828
    10

    2000mm/sec Scan speed, 5G Acceleration Speed.

    Aeon laser's newly designed lightweight laser head paired with digital high-speed stepper motors in Super Nova10. 5G acceleration, up to 2000 mm/sec.

    Seamless Source Switching

    Switching between the RF metal tube and the DC glass tube, happened smoothly and fast. The software automatically triggers the appropriate laser tube and mirror position in roughly half a second.

    9
    11(1)

    All in One Design

    Super Nova10 is different from Nova10, with built-in 5200 chillers, blower, and air assist.

    Integrated Autofocus

    The newly designed laser head features an integrated autofocusing mechanism that is lightweight and a whole lot more accurate. Say goodbye to collisions and gouged material.

    AEON lASER Integrated Autofocus
    Active Airflow

    Active Airflow

    Say goodbye to excessive soot buildup on your material and in your laser cabinet.

    Effective Table and Front Pass Through Door

    The Supper Nova10 comes with a slate table together with the honeycomb, which is suitable for cutting and engraving. There is a pass-through door that could pass through extra-length materials.

    23
    18

    Powerful and Steady up/down system

    The up and down system adopted one belt driving, with a powerful stepper motor, which ensured the table up and down steadily, never tilted. Lifting capacity is up to 120KG.

    Convenient Scrap and Product Collecting System

     All of your cut pieces now fall into a conveniently located compartment below, which can be easily emptied to prevent scrap pieces from piling up and becoming a fire hazard.

    21

    Nova10 Super Material Applications

    Laser Cutting Laser Engraving
    • Acrylic
    • Acrylic
    • *Wood
    • Wood
    • Leather
    • Leather
    • Plastics
    • Plastics
    • Fabrics
    • Fabrics
    • MDF
    • Glass
    • Cardboard
    • Rubber
    • Paper
    • Cork
    • Corian
    • Brick
    • Foam
    • Granite
    • Fiberglass
    • Marble
    • Rubber
    • Tile

    • River Rock

    • Bone

    • Melamine

    • Phenolic

    • *Aluminum

    • *Stainless Steel

    *Cannot cut hardwoods like mahogany

    *CO2 lasers only mark bare metals when anodized or treated.




  • Previous:
  • Next:

  • Super10
    Working Area 1000*700mm(39 3/8″ x 27 9/16″)
    Machine Size 1500*1210*1025mm (59 1/16″ x 47 41/64″  x 40 23/64″)
    Machine Weight 1000 lb (450kg)
    Work Table Honeycomb + Blade
    Cooling type water cooling
    Laser power 80W/100W CO2 Glass Tube +RF30W/60W Metal Tube
    Electric Up&Down 200mm (7 7/8″)   Adjustable
    Air Assist 105W Built-In Air Pump
    Blower Super10 330W Built-In Exhaust Fan, Super14,16 550W Built in Exhaust Fan
    Cooling Super10 Built-in 5000 Water Chiller, Super14,16 Built-in 5200 Chiller
    Input Voltage 220V AC 50Hz/110V AC 60Hz
    Engraving Speed 2000mm/s
    Cutting Thickness 0-30mm(depends on different materials )
    Max Acceleration Speed 5G
    Laser Optical Control 0-100% Set by software
    Minimum Engraving Size Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Character)
    Locating Precision <=0.01
    Red Dot Positioning Yes
    Built-in WIFI Optional
    Auto Focus Integrated Autofocus
    Engraving Software RDWorks/LightBurn
    Graphic Format Supported AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LARN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA
    Compatible Software CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software
