Nova Elite 1610 80W 100W Laser Engraving Cutting Machine
Overall Review
Nova Elite16 is a professional co2 laser engraving and cutting machine. The working area is 1000mm*1400mm Nova10 Elite's engraving speed is faster than MIRA series machines. Up to 1200mm/sec, the acceleration speed is 5G, has the fastest speed in its class. The structure of the Nova16 elite is very strong, which makes it more steady. Nova Elite14 equipped with a honeycomb and a blade worktable and with a model 5200 chiller, makes it possible to install a 100W or even 130W laser tube. The Z-axis now increased to 200mm, so it can fit in higher products. The air assists system got a pressure gauge and regulator to give the users option to add a more powerful compressor to cut thicker materials. The front and back material pass-through door makes it possible to cut long materials.
Advantages of the Nova Elite16
Super Strong Fully Enclosed Machine Body
The Elite NOVA16 is built like a tank. The main structure adopted a thick steel tube, which ensured strength. The whole body was fully enclosed, with sealing on every door and window, more safety.
Clean pack Technology
One of the biggest enemies of laser engraving and cutting machines is dust. Smoke and dirty particles will slow down the laser machine and make the outcome bad. The Clean pack design of NOVA Elite16 protects the linear guide rail from dust, reduces maintenance frequency effectively, and gets a much better outcome.
All-in-one design
The Nova Elite16 has a built-in 550W Exhaust Fan, and a 5200 Water Chiller. All in one Design - friendly for starters and save much room.

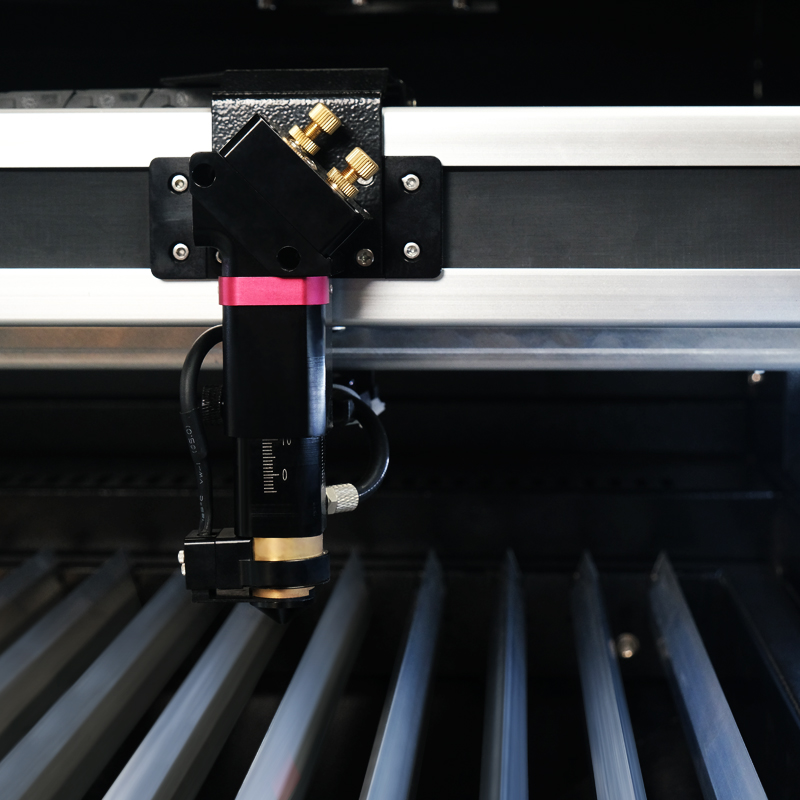

Integrated Autofocus
(2”,2.5”,4” focus lens position)
Integrated Autofocus The newly designed laser head features an integrated autofocusing mechanism that is lightweight and a whole lot more accurate. Say goodbye to collisions and gouged material.
Convenient Scrap and Product Collecting System
All of your cut pieces now fall into a conveniently located compartment below, which can be easily emptied to prevent scrap pieces from piling up and becoming a fire hazard.
Effective Table and front pass through door
The Nova Elite16 got a ball screw electric up&down table, steady and precise. Z-Axis height is 200mm, can fit in 200mm height products. The front door can open and pass through longer materials.
AEON NOVA Elite16 Material Applications
| Laser Cutting | Laser Engraving |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Cannot cut hardwoods like mahogany
*CO2 lasers only mark bare metals when anodized or treated.
| Elite16 | |
| Working Area | 1600*1000mm （62 63/64″ x 39 3/8″) |
| Machine Size | 2100*1510*1025mm ( 82 43/64″ x 59 29/64″ x 40 23/64″ ) |
| Machine Weight | 1370 lb (620kg) |
| Work Table | Honeycomb + Blade |
| Laser power | 80W/100W CO2 Glass Tube |
| Eletric Up&Down | 200mm (7 7/8″) Adjustable |
| Air Assist | 105W Built-In Air Pump |
| Blower | Elite10 330W Built-In Exhaust Fan, Elite14,16 550W Built in Exhaust Fan |
| Cooling | Elite10 Built-in 5000 Water Chiller, Elite14,16 Built-in 5200 Chiller |
| Input Voltage | 220V AC 50Hz/110V AC 60Hz |
| Engraving Speed | 1200mm/s(47 1/4″/S) |
| Cutting Thickness | 0-30mm(depends on different materials ) |
| Max Acceleration Speed | 5G |
| Laser Optical Control | 0-100% Set by software |
| Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Charactor) |
| Locating Precision | <=0.01 |
| Red Dot Positioning | Yes |
| Built-in WIFI | Optional |
| Auto Focus | Integrated Autofocus |
| Engraving Software | RDWorks/LightBurn |
| Graphic Format Supported | AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LBRN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA |
| Compatible Software | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software |
