3 Desktop Co2 Laser Engravers Cutters from AEON Laser

As co2 machine technology has advanced, more and more people can afford to buy a desktop co2 laser engraver cutter for their homes. A co2 laser engraver cutter is perfect for those who want to burn in designs on leather, wood, paper, and more. It’s an excellent way to run free with creativity. Today I’ll bring the 3 Desktop Co2 Laser Engravers Cutters from AEON Laser.
AEON Laser offers desktop co2 laser engravers in high quality and best after sales serive. All the desktop laser cutters are all in one, with built-in water cooling system, exhaust fan and air assist pump. Engraving speed up to 1200mm/s, max acceleration speed is 5G.

3 Desktop Co2 Laser Engravers Cutters – 1.40W/60W MIRA5 Laser (with a 500*300mm working area)
mira5-02

Laser Tube type: CO2 sealed glass tube
Z Axis Height: 120mm adjustable
Max Engraving Speed: 1200mm/s
Max Cutting Speed: 680mm/s
Cutting Thickness:0-10mm (depends on different materials )

3 Desktop Co2 Laser Engravers Cutters – 2. 60W/80W/RF30W MIRA7 Desktop Laser (with a 700*450mm working area)
mira7_1

Laser Tube type: CO2 sealed glass tube
Z Axis Height: 150mm adjustable
Max Engraving Speed: 1200mm/s
Max Cutting Speed: 680mm/s
Cutting Thickness:0-20mm (depends on different materials )

3 Desktop Co2 Laser Engravers Cutters – 3. 60W/80W/100W/RF30W/RF50W AEON MIRA9 Laser (with a 900*600 working area)

3 Desktop Co2 Laser Engravers Cutters

Laser Tube type: CO2 sealed glass tube

Laser Tube:60W/80W/100W/RF30W/RF50W

Z Axis Height: 150mm adjustable
Max Engraving Speed: 1200mm/s
Max Cutting Speed: 680mm/s
Cutting Thickness:0-20mm (depends on different materials )



Difference between the 3 Desktop Co2 Laser Engravers Cutters

Model   MIRA5  MIRA7 MIRA9
Working Area  500*300mm  700*450mm  900*600mm
Laser Tube  40W(Standard),60W(with tube extender)  60W/80W/RF30W  60W/80W/100W/RF30W/RF50W
Z Axis Height  120mm adjustable  150mm adjustable  150mm adjustable
Air Assist  18W Built-In Air Pump  105W Built-In Air Pump  105W Built-In Air Pump
Cooling  34W Built-In Water Pump  Fan Cooled (3000) Water Chiller  Vapor Compression (5000) Water Chiller
Machine Dimension  900mm*710mm*430mm  1106mm*883mm*543mm  1306mm*1037mm*555mm
Machine Net Weight  105Kg  128Kg  208Kg

3 Desktop Co2 Laser Engravers Cutters can engrave and cut on the following materials:

Laser Cutting Laser Engraving
  • Acrylic
  • Acrylic
  • *Wood
  • Wood
  • Leather
  • Leather
  • Plastics
  • Plastics
  • Fabrics
  • Fabrics
  • MDF
  • Glass
  • Cardboard
  • Rubber
  • Paper
  • Cork
  • Corian
  • Brick
  • Foam
  • Granite
  • Fiberglass
  • Marble
  • Rubber
  • Tile

  • River Rock

  • Bone

  • Melamine

  • Phenolic

  • *Aluminum

  • *Stainless Steel



*Cannot cut hardwoods like mahogany



*CO2 lasers only mark bare metals when anodized or treated.

Benefits of Desktop co2 laser engravers cutters

1.Low cost

Some professional laser engraving and cutting machines are start at $15000, but for a desktop laser machine maybe $5000-$15000.  Because of the lower purchase price, your return on investment should be shorter, and maintenance and upkeep costs are also typically lower with desktop units.

2.Small footprint

Compact desktop co2 laser engraver cutters are ideal for small shops and retail environments, and some diy lovers for hobby. Because some people don’t have the engouch room for big machines, so a small desktop laser engraver are friendly for them. In addition, because of their small size, these units are portable, making desktop co2 laser easy for you to transport the equipment to on-site locations like mall kiosks, home shows, wedding shows, craft shows, sporting events, etc.

3. User friendly

Some desktop co2 laser are very easy to operate. So some people choose the desktop co2 laser engraver cutter as their first entry machine or some for hobby use.

Benefits of the  3 Desktop Co2 Laser Engravers Cutters from AEON LASER

1.All-In-One System

If space is of concern, you’ll be pleased to know that Aeon is the first in the laser industry to offer an all-in-one solution comprised of an integrated water cooling system, exhaust fan and air assist pump so that no extra space is needed for ancillary components.

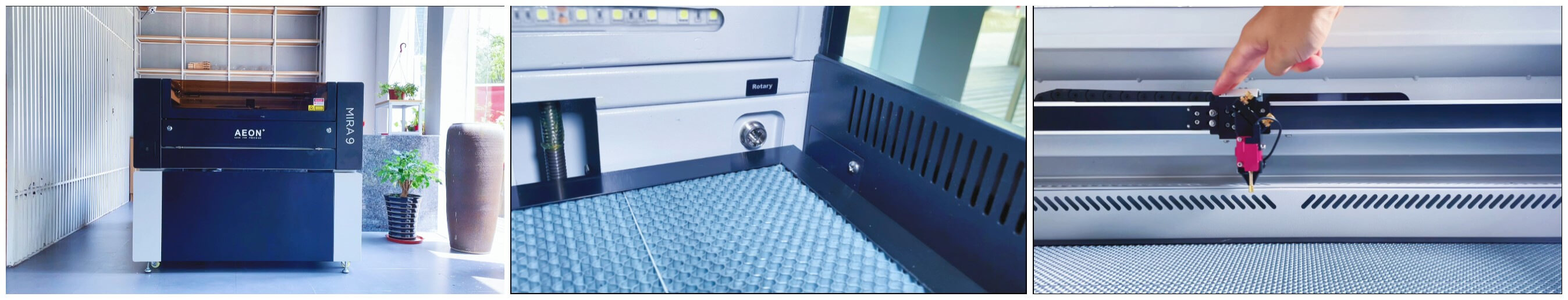

mira 5030-chiller built in

2. Fastest in its Class

Aeon’s featherweight laser head design and high speed digital stepper motors, the Mira desktop co2 laser engravers cutters can achieve 5G of acceleration resulting in scan speeds of up to 1200 mm/sec and cutting speeds of up to 680 mm/sec.

3. Multiple Interfaces

Multi-CommunicationEasily send jobs from your PC or Mac via USB, Ethernet or WiFi. There is even 256 MB of onboard memory built right into the controller for storing popular jobs, or you can even run programs straight from a USB Flash Drive.



4.Smart Rotary Device

Engrave cylindrical items with either a rotary chuck or a roller rotary and enjoy a painless transition between flat engraving and rotary engraving, thanks to an auto sensing rotary port.

5.Clean Pack Design

Our unique linear motion design utilizes the drive belts themselves to enclose the linear rails and bearing blocks so that they are protected from smoke and debris and can continue to operate without frequent maintenance or repairs.

and so much more…


These are 3 Desktop Co2 Laser Engravers Cutters from AEON LASER. If you need high-power and professional carbon dioxide cutting machines, welcome to visit our NOVA series and Nova Super series.




Post time: Oct-25-2021
